Magic Mesh

Text with no cell service and no internet. No radio license required.

A pocket radio that sends text radio to radio, with no cell service and no internet. On your Wi-Fi it also ties your area to every other Magic Mesh place through Magic PTT. It arrives with our Magic Mesh firmware on it, tested, and it takes new firmware over Wi-Fi with one press.

The front of the Pebble case, black with yellow lettering

Drawn from the case's own design: the Pebble case, black with yellow lettering.

Our own case

  • Designed and printed by us in ABS or ASA, with the Magic Mesh mark and lettering set into the face in a second colour.
  • Two shapes: the Pebble, the smaller one, or the Shard, the first and taller one. Seven body colours, black among them, and the lettering in any colour that shows on it.
  • A real button under the screen, with a hexagon round it, and a framed window for the screen.
  • Screwed together with four steel screws into nuts: no clips to wear out or snap.
  • The battery is held by a screwed-down keeper, and the board by solid hooks: nothing rattles.
  • A screw-on antenna on a proper SMA socket, and a loop at the top for a carabiner or a lanyard.

What it does

  • No radio license required. Charge it, switch it on and use it.
  • Text radio to radio on the MeshCore network, with no cell service and no internet. It can take part in Meshtastic as well.
  • Magic Mesh Global: on Wi-Fi it links your area to every other linked place through Magic PTT.
  • Look around: one press asks who is in range and shows how well each radio hears you.
  • New firmware arrives over Wi-Fi with one press. No cable, and it goes back by itself if an update does not work.
  • Screen, case, antenna and a 3000 mAh battery. Charges over USB-C.

The short list

Radio
LoRa, 902 to 928 MHz
License
No radio license required
Networks
MeshCore and Meshtastic, plus Magic Mesh Global over Wi-Fi
Screen
0.96-inch OLED
Battery
3000 mAh, charges over USB-C
Wi-Fi
2.4 GHz
Position
GPS module, optional

Shape

Body colour · Black

Lettering colour · Yellow

Magic Mesh handheld$89.99

Set up and tested, with its case, antenna and battery. You set where it is by hand on the map.

How many1
Magic Mesh handheld with GPS$99

The same radio with the GPS module fitted and tested: it finds its own position.

How many0

Order one, or several of either kind: up to 10 in one order.

Built to order in the colours you pick, then tested and shipped.

Free USPS shipping in the US on orders of $149 and over ($7.95 under), or Priority Mail for $9.95 at checkout. You will sign in to Magic PTT first so the order lands on your account. A Magic PTT membership is needed to use it and is not included.

All sales are final. If your radio arrives dead, tell us within 30 days and return it to us; the return postage is yours. We examine it when it arrives and send a replacement. Drops, water and wear are not covered.

Already have a board of your own?A board license puts Magic Mesh on it, and you flash it yourself: $4.99 launch price until December 31. See the board license
Have your own Heltec V4? Our case alone, $19.99 at launch, and a car cup holder cradle →

Good to know before you order

  • Set up and testedOur Magic Mesh firmware is on it and it has linked and answered on our bench before it ships.
  • A Magic PTT membership is neededNot included. Magic Mesh is managed from Magic PTT, so you need a membership to use it.
  • An early batchMessages to everyone on a channel work today. Private one-to-one messages are still being built and will arrive as an update.
  • GPS is an optionWithout it the radio does not know its own position, and you set where it is by hand on the map. With it, the radio finds its own position and can show on the maps by itself. Sharing your position is off until you turn it on.
Live nowSee the Magic Mesh on the air: the live map →Every Magic Mesh board, the radios they hear and the trails messages take.

Magic Mesh · three networks

One radio. Three networks.

A Magic Mesh radio is on MeshCore, Meshtastic and Magic Mesh from the one radio. You read all three in one inbox, and one message can go out on all three.

One Magic Mesh radio

MESHCORE

The MeshCore network around you

Your radio reads the open MeshCore channel and sends on it, radio to radio, with no internet.

MESHTASTIC

The Meshtastic network around you

The same radio reads the open Meshtastic channel and sends on it too. One radio, not one for each network.

MAGIC MESH

Our own network

Magic Mesh radios talk to each other on a network of their own. Where one has Wi-Fi, Magic Mesh Global carries it on to every other Magic Mesh place, so family in another state reads it in Magic PTT.

One inbox

A simulated example. Names are made up.

MESHCORECamp North
Net at eight tonight
MESHTASTICTrail Node 2
Road is open again
MAGIC MESHMP-RIDGE, over the air
All OK here

Each message is marked with the network it came on. Pick one, two or all three for what you send.

Meshtastic is a registered trademark of Meshtastic LLC, and MeshCore is the name of its own project. Magic Mesh works with both networks and is not made or endorsed by either.

How it is used

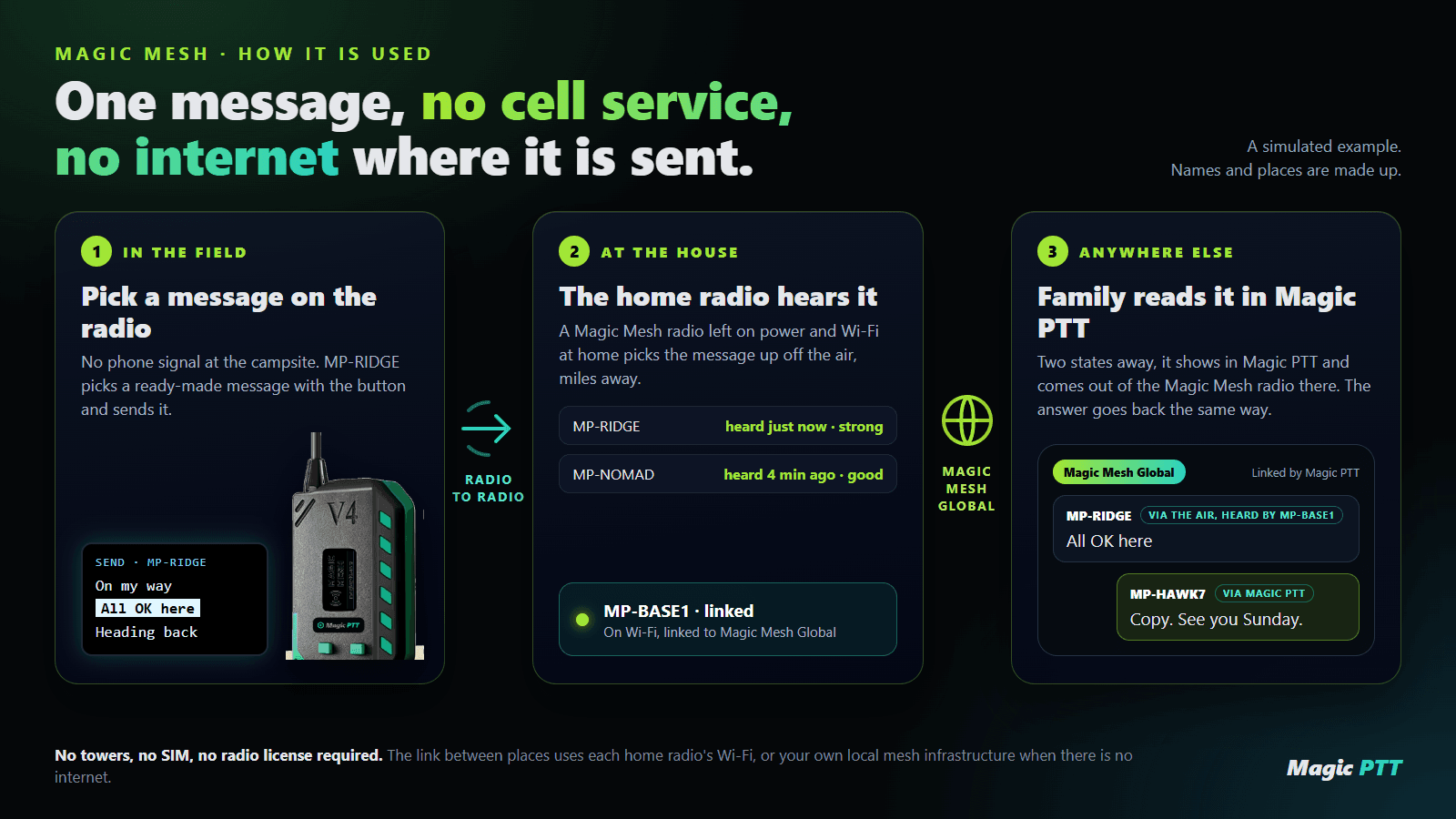

A simulated example: a ready-made message picked on a Magic Mesh radio in the field is heard by a radio at home and read by family far away in Magic PTT, in one inbox with messages from MeshCore and Meshtastic
